Video Borescope System

Video Borescope System
Video Borescope System
Product Code : VB 01
Product Description

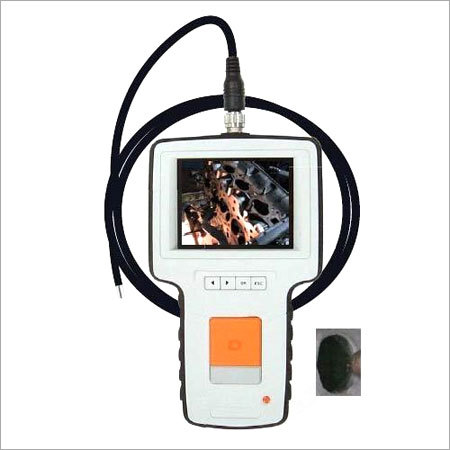

Video Borescope System

Our clients are from different verticals and they can avail our comprehensive range of Video Borescope System. We fabricate these videoscope systems with quality LED, TFT display, micro-camera and digital recorder. Our video scope system is widely used for quality control and maintenance markets. We have a team of professional quality controllers and R&D professionals who design and check the quality at graduated time. Further, our video scope are acclaimed for the following

  • 4 super-strength white light LEDs

  • With 4 high-brightness LED light sources (0~275Lux/4cm),

  • every detail of your target can be illuminated.

  • Oil and scratch resistant

  • Oil and scratch-resistant tempered glass not only protects the

  • camera, but also maintains the high image resolution.

  • Optimize illuminant design

  • The optimized illuminant design can highlight most cracks and

  • burn marks on highly reflective surfaces.

  • Replace probe/camera assembly in the field

Below is the features

  • Professional videoscope

  • Portable product

  • A professional videoscope designed for professionals.

  • You can operate this system accurately and rapidly

  • with your gloves on!

  • Operates up to 4 hrs on a single charge

  • Equipped with a high capacity battery. BoresEye can work and record for up to 4 hours continuously after being charged for 2 hrs. The 512MB memory card can also hold 14,000 photos. You can manage and mail these photos as a working report on your desktop PC after they're transferred through a USB cable. 3.5" Extra-wide view angle TFT 3.5 " Extra-wide view angle and clear TFT, protected by oil and scratch resistant tempered glass.

  • Insertion Tube & Light Source Specification

  • Image Sensor CMOS Image Sensor

  • Resolution (Dynamic / Static) 320(H)*240(V) / 640(H)*480(V)

  • Size 5.5mm 1M~30M

  • Tip (Insertion Tube ) Diameter

  • Insertion Tube Length

  • Frame rate ~30 fps

  • S/N Ratio 42dB

  • Exposure Automatic

  • White balance Fix

  • Field of View (FOV) 67o

  • Depth of Field (DOF) 1.5cm~10cm

  • Light Source 4 White LED

System Specification

  • Power 100-220VAC to 5.5 Volt DC

  • Display 3.5, TFT LCD Monitor 320*240 Pixels

  • Interface Mini usb 1.1/ AV out / AV in/

  • Battery Rechargeable Li-Polymer Battery (3.7V)

  • Video Out Format NTSC & PAL

  • Recording medium SD card (512 Mb, upgradeable to 2G)

  • Compression Format MPEG4

  • Still Image Storage Format JPEG (640 x 480)

  • Video Recording Format ASF (320 x 240)

  • Language English (French or Spanish available in future)
